PL & PLC Lamps / T8 & T5 Tubes





#1214 – LED5.5WPL13-HY 4CCT  (NEW)
(HYBRID Ballast Compatible / Ballast Bypass)
Model Number: #1214 – LED5.5WPL13-HY 4CCT
Wattage (W): 5.5W
CFL PLC Equivalent: PL-13 / PL13 (2-PIN)
Color Temperature: 2700K / 3000K / 3500K / 4000K
Voltage: 120V-277VAC (Ballast Bypass)
Ballast Compatible: HYBRID – Ballast Compatible & Ballast Bypass 120V-277V
Light Ouput (lm): 620 lm
Rated Life: 50,000 Hrs.
Beam Angle (degrees): 120°
Dimmable: No
Energy Efficiency:
 112.7 lm/W (@4000K)
CRI: 80
Safety Certification: cUL Classified
Operating Temperature: -20°C to +45°C
Environmental Rating: Damp Location. Not for Enclosed Fixtures
Dimensions (inch):
 7″ x 1-1/4″ x 1-3/16″
Dimiensions (mm)
 178 mm x 32 mm x 18 mm
Base: GX23 2-PIN
Carton Quantity: 24 Pieces Per Carton
Warranty: 5 Years
Note: This lamp has been tested to be compatible with the vast majority of models among major ballast manufacturers. As such, there still may be a chance your ballast will not work with this lamp. A trial test is always recommended.

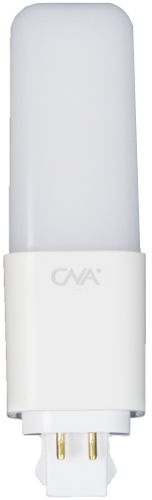

#1023 – LED 7WPLC13-HY-30K
  #916 – LED 7WPLC13-HY-40K
(HYBRID Ballast Compatible / Ballast Bypass)
Model Number:

#1023 – LED7WPLC13-HY-30K

#916 – LED7WPLC13-HY-40K
Wattage (W): 7W
CFL PLC Equivalent: 4-Pin PLC13 / PLC-13
Color Temperature: 3000K / 4000K
Voltage: 120V-277VAC (Ballast Bypass)
Operation: HYBRID – Ballast Compatible & Ballast Bypass 120V-277V
Light Ouput (lm): 650 lm
Rated Life: 40,000 Hrs.
Beam Angle (degrees): 360°
Dimmable: No
Power Factor: 0.9
CRI: 80
Safety Certification: cUL
Operating Temperature: -20°C to +45°C
Environmental Rating: Not for Enclosed Fixtures
Length: 5-1/32 inches / 128mm
Width: 1-7/16 inches / 37 mm
Base: G24q Universal 4-Pin
Carton Quantity: 10 / 50 Pieces Per Carton
Warranty: 3 Years
Note: This lamp has been tested to be compatible with the vast majority of models among major ballast manufacturers. As such, there still may be a chance your ballast will not work with this lamp. A trial test is always recommended.

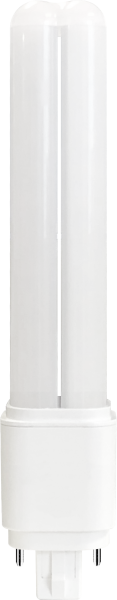

#1215 – LED9WPLC26/32/42-HY 40K  (NEW)
(HYBRID Ballast Compatible / Ballast Bypass)
Model Number: #1215 – LED9WPLC26/32/42-HY 40K
Wattage (W): 9W
CFL PLC Equivalent: PLC26 / PLC 32 / PLC42 (4-PIN)
Color Temperature: 4000K
Voltage: 120V-277VAC (Ballast Bypass)
Ballast Compatible: HYBRID – Ballast Compatible & Ballast Bypass 120V-277V
Light Ouput (lm): 1250 lm
Rated Life: 50,000 Hrs.
Beam Angle (degrees): 360° – Omnidirectional
Dimmable: No
Energy Efficiency:
 139 lm/W
CRI: 80
Safety Certification: cUL Classified
Operating Temperature: -20°C to +45°C
Environmental Rating: Damp Location. Not for Enclosed Fixtures
Dimensions (inch):
 6-7/8″ x 1-3/8″ x 1-3/8″
Dimiensions (mm)
 173 mm x 34 mm x 34 mm
Base: G24Q 4-PIN
Carton Quantity: 24 Pieces Per Carton
Warranty: 5 Years
Note: This lamp has been tested to be compatible with the vast majority of models among major ballast manufacturers. As such, there still may be a chance your ballast will not work with this lamp. A trial test is always recommended.

































#917 – LED 11WPL26/32/42-HY-30K
(HYBRID Ballast Compatible / Ballast Bypass)
Model Number: #917 – LED11WPL26/32/42-HY-30K
Wattage (W): 11W
CFL PLC Equivalent: 4-Pin PLC 26/32/42 4-Pin PLT 26/32/42
Color Temperature: 3000K
Voltage: 120V-277VAC (Ballast Bypass)
Operation: HYBRID – Ballast Compatible & Ballast Bypass 120V-277V
Light Ouput (lm): 1300 lm
Rated Life: 40,000 Hrs.
Beam Angle (degrees): 360°
Dimmable: No
Power Factor: 0.9
CRI: 80
Safety Certification: cUL
Operating Temperature: -20°C to +45°C
Environmental Rating: Not for Enclosed Fixtures
Length: 6-7/16 inches / 165 mm
Width: 1-7/16 inches / 37 mm
Base: G24q / GX24q Universal 4-Pin
Carton Quantity: 50 / 200 Pieces Per Carton
Warranty: 3 Years
Note: This lamp has been tested to be compatible with the vast majority of models among major ballast manufacturers. As such, there still may be a chance your ballast will not work with this lamp. A trial test is always recommended.



































LED T8 Tubes

LED 19W 4F T8 50K - Cropped

DLC Logo - R





Ballast Compatible & Ballast Bypass Models



  • NSF Certified

  • Energy Saving

  • Lightweight

  • 230° Beam Angle (Almost Omni-Directional)

  • Non-Yellowing Rigid Glass Diffuser





Ballast Compatible / BypassModel NumberLumensSpec Sheet
Ballast Compatible#1209 - LED11WT8-CM 35K1800 lmSpec Sheet

Ballast Compatibility
Ballast Compatible#1210 - LED11WT8-CM 40K1800 lmSpec Sheet

Ballast Compatibility
Ballast Compatible#1211 - LED14WT8-CM 50K2200 lm Spec Sheet

Ballast Compatibility
HYBRID - Ballast Compatible / Ballast Bypass - Double Ended#1014 - LED12WT8-HY 40K1800 lmSpec Sheet

Installation Instructions

Ballast Compatibility
HYBRID - Ballast Compatible / Ballast Bypass - Double Ended#1015 - LED12WT8-HY 50K1800 lmSpec Sheet

Installation Instructions

Ballast Compatibility
Direct 347V - Double Ended
#1073 LED14WT8-347V 40K1800 lmSpec Sheet







 LED T5 Tubes

– Ballast Compatible

  • DLC Listed

  • NSF Certified

  • Direct Replacement

  • Energy Saving

  • Lightweight

  • 185° Beam Angle

  • Non-Yellowing Rigid Glass Diffuser

    DLC Logo - R







LED25WT5 8XX COMP



Model Number:#943 LED25WT5 840 COMP
#955 LED25WT5 850 COMP
Electronic Ballast Compatibility:Instant Start & Program Start
Rated Power (W):28 W (High Ballast Factor)
Colour Temperature:4000K / 5000K
Direct Replacement For:F54/T5/HO
Total Harmonic Distortion (THD):20%
Power Factor:0.9
Light Output:3500 lm
Efficacy (lm/W):125 lm/W
Colour Rendering Index (CRI):80
Rated Life (Hours):50, 000 Hrs.
Beam Angle:185°
Nominal Length:4 Feet
Diffuser Material:Glass (Non-Yellowing - Rigid)
Certifications:DLC, NSF, cULus
Classification Type:Replacement Lamps (plug and play) UL Type A
Carton Quantity:25 pieces / box
